12V Switch Panel Wiring Basics: How to Wire a Rocker Switch Panel

Short answer: a 12V/24V rocker switch panel doesn't do anything electrically complicated — every circuit follows the same basic path: battery → fuse → switch → accessory → ground. The switch panel just gives you a clean, centralised place to control several accessories (driving lights, air compressors, fridges, USB chargers) from one spot, instead of running separate switches all over the vehicle. This guide walks through each part of that path so you know what you're actually wiring.

What does a switch panel actually control?

Each rocker switch on the panel is just an on/off gate sitting in the middle of a circuit. When you flick it on, it completes the circuit and lets current flow from your battery, through the switch, to whatever accessory that circuit powers — a light bar, a fridge, a compressor, and so on. Flick it off, and the circuit is broken. A multi-gang panel (2, 3, 4, 6 or 8 gang) is simply several of these independent circuits sharing one housing.

The basic wiring path

• Battery (or a switched power source): where the circuit's power comes from. This can be a permanent 12V/24V feed straight from the battery, or a feed that's only live when the ignition/accessories circuit is on — see the next section.
• Fuse: sits as close to the power source as possible, before anything else. Its only job is to protect the wiring if something downstream shorts out. The fuse rating should match the wire gauge and the accessory's actual current draw, not just the switch panel's maximum rating.
• Switch: the on/off control on your panel. For light-duty accessories (USB chargers, small pumps, interior lights), the switch can usually handle the full load directly.
• Accessory: the light, fridge, compressor, or charger being powered.
• Ground: completes the circuit back to the negative terminal or a solid chassis earth point. A poor or corroded ground is one of the most common causes of flickering lights or accessories that won't run at full power.

Switched (ACC) power vs constant (battery) power

Before wiring a circuit, decide whether it should be:

• Constant/battery-fed: stays live even with the vehicle off — used for things like a fridge you want running overnight. These need their own protection against flattening your battery (a low-voltage cut-off or a dedicated auxiliary battery).
• Switched/ACC-fed: only live when the ignition or accessories circuit is on — the safer default for driving lights, compressors and anything you don't want accidentally left on and draining the battery.

When you need a relay

Rocker switches on a panel are rated for a specific maximum current (commonly in the 10–20A range depending on the switch). For high-draw accessories — driving light bars, winches, large compressors — running the full current through the switch itself can overheat it. The standard approach is to use the switch to trigger a relay, and let the relay (rated for the higher current) carry the actual load. The switch only ever carries the small current needed to energise the relay coil, not the full accessory load.

Fuse sizing

The fuse protects the wire, not the accessory. As a general rule, size the fuse to the wire gauge you're using and to slightly above the accessory's actual rated draw — never simply match it to the switch panel's maximum rating. If you're not confident calculating this for your specific accessory and wire run, a qualified auto-electrician can size it correctly in a few minutes.

Etronx switch panel range

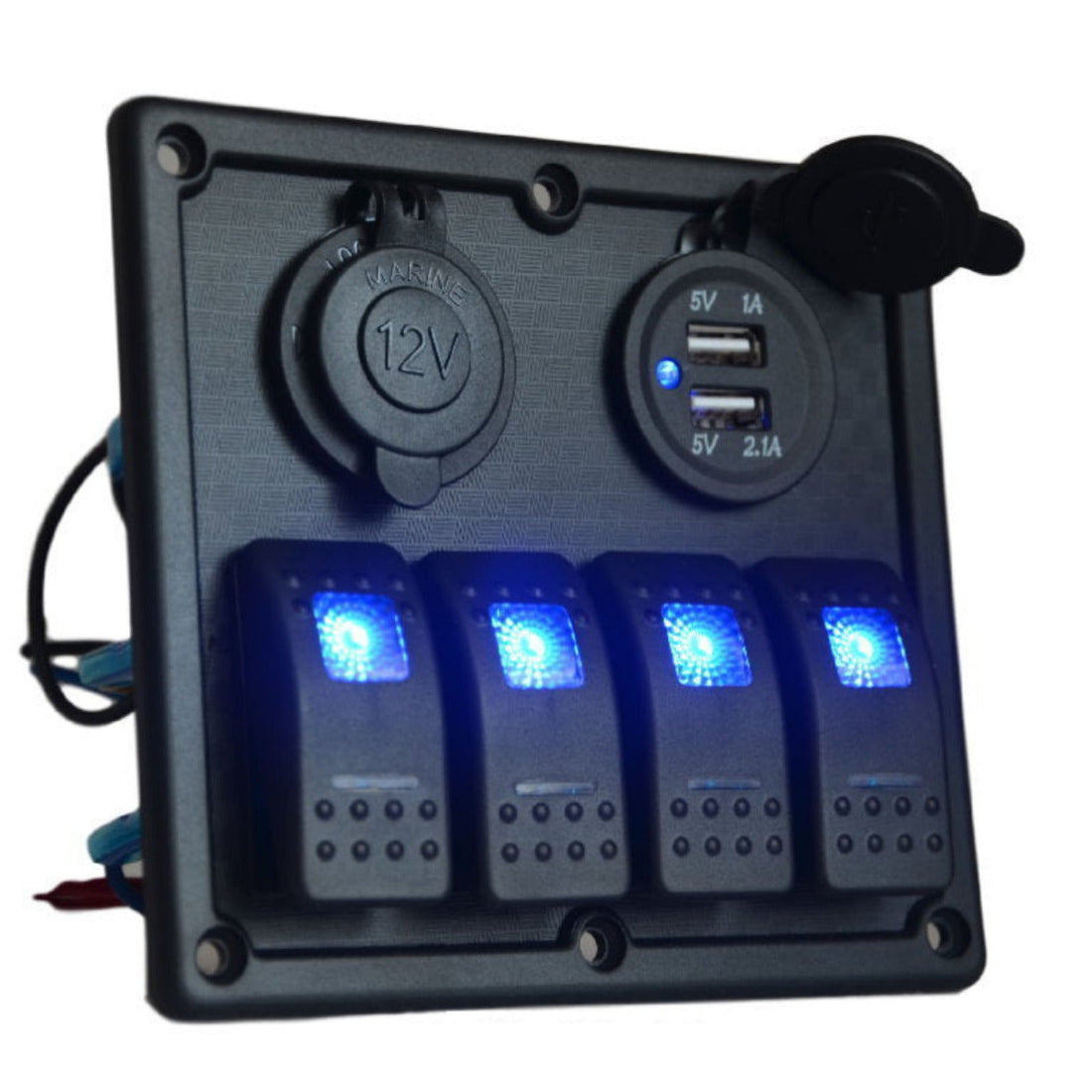

Etronx's rocker switch panels are pre-wired for both 12V and 24V systems, with blue LED illuminated switches so you can see what's on at a glance, and a waterproof rubber seal-cap rated to IP66 for marine and off-road use. Panels are available in aluminium or ABS housings, from 1-gang up to 8-gang, and several models integrate a USB charger or digital voltmeter directly into the panel alongside the switches.

Frequently asked questions

Do I need a relay for every accessory on my switch panel?
No — light-duty accessories like USB chargers, interior lights and small pumps can usually run straight through the switch. Relays are mainly needed for higher-draw accessories like driving lights, winches and large compressors.

Can I run 12V and 24V accessories from the same panel?
Etronx panels are rated for both 12V and 24V systems, but each individual circuit should only carry the voltage your accessory is designed for — don't mix 12V and 24V accessories on the same circuit.

What size fuse do I need?
It depends on your wire gauge and the accessory's actual current draw — there's no single answer that fits every setup. If you're unsure, a qualified auto-electrician can confirm the right fuse size for your specific wiring run.

Is it safe to wire a switch panel myself?
Basic low-current accessories are a reasonably common DIY job, but if you're not confident with automotive wiring — especially anything involving relays or higher-draw accessories — it's worth having a qualified auto-electrician install or check your setup.
