YJ-SP-008 12V 24V 4 Gang LED Rocker Switch Panel USB Car Charger for 4WD Boat Caravan
Availability: In stock
Sku: YJ-SP-008

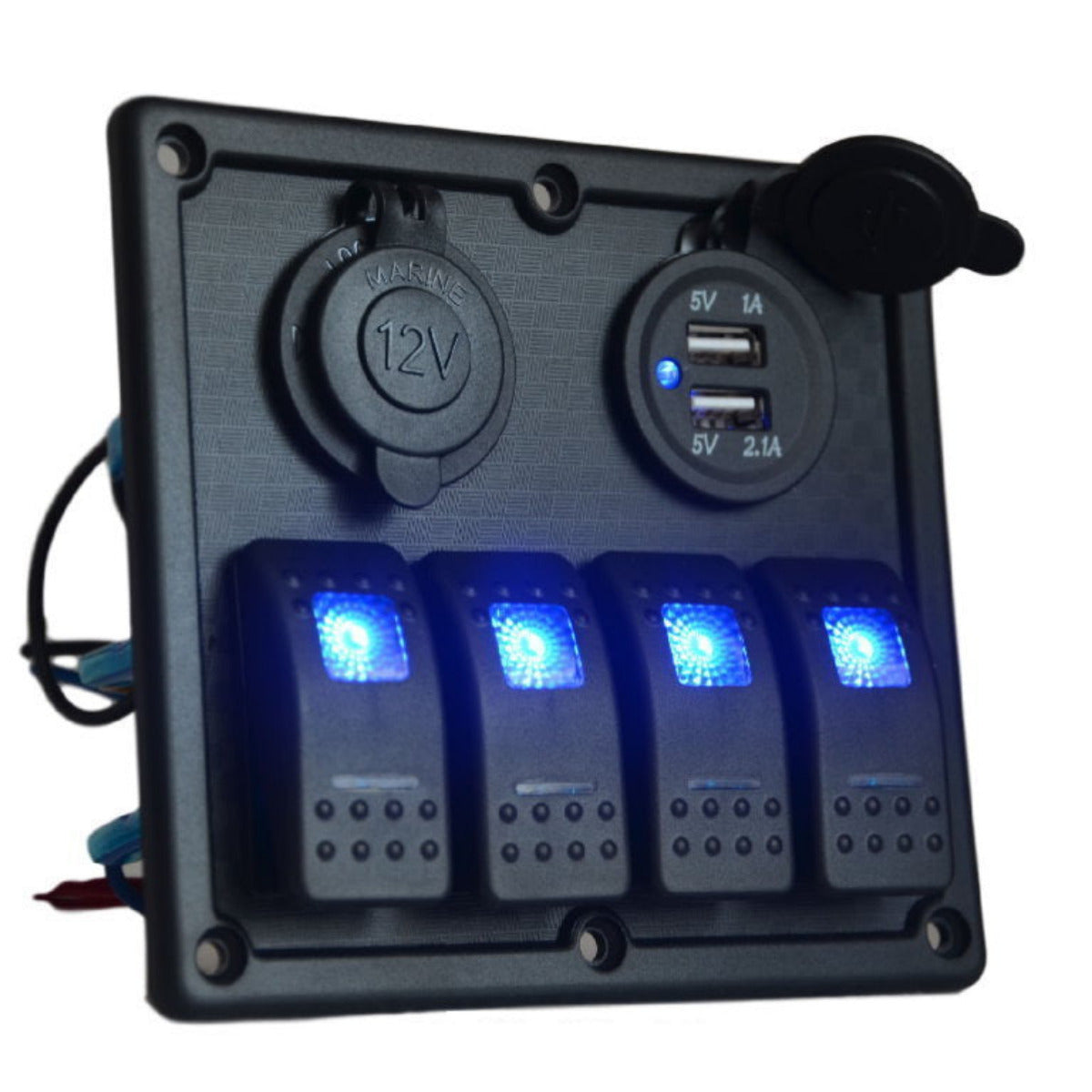

This 12V 24V 4 Gang Switch Panel features 4 Rocker Switches, Dual USB Charger & Car Cigarette Lighter Charger. The panel is made of high quality ABS material and measures 130 x 120mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.
IMPORTANT NOTE:

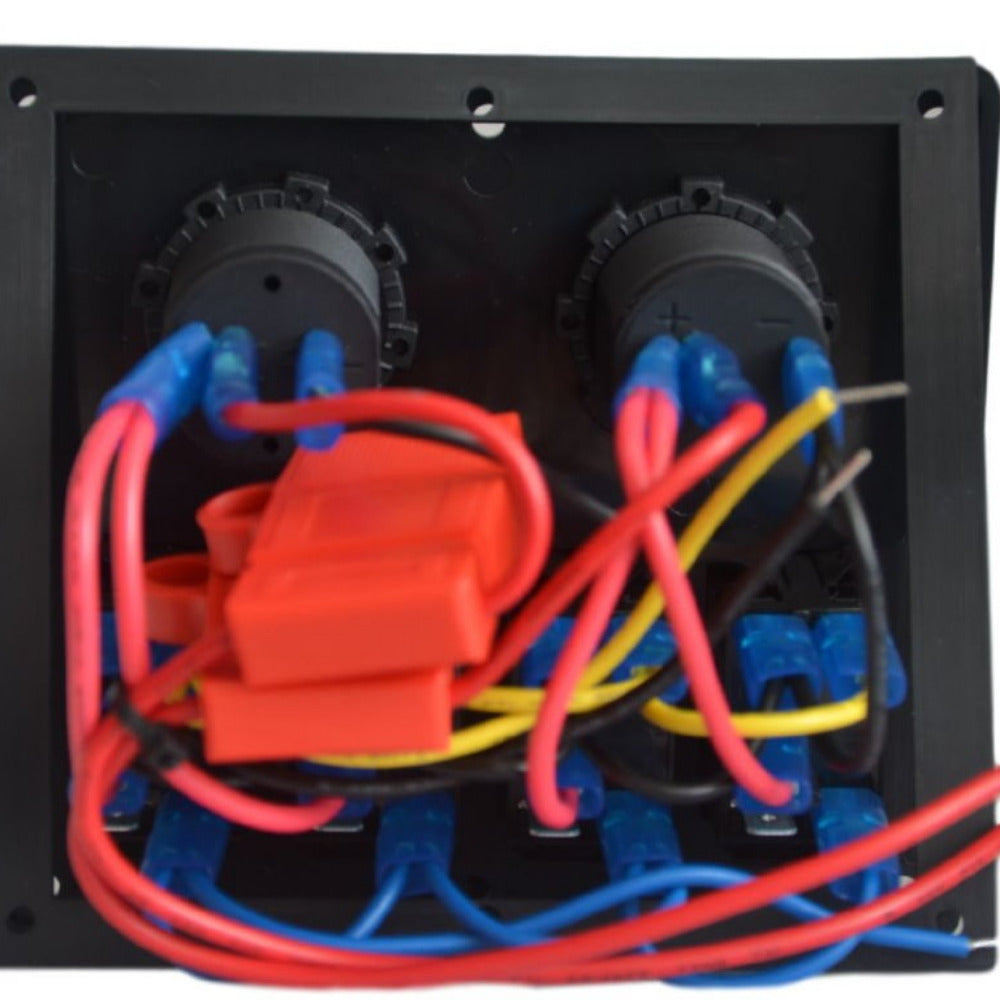

This Panel comes with all wires connected; they are not supposed to be pulled out.
Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.
Features:
- 100% brand new and high quality
- Overload protection by Circuit breaker(Include Fuse and Fuse Holder)
- Rubber seal-cap to keep it water-tight, suitable for marine
- IP Rating: IP66
- Suitable for both 12V and 24V systems, Panel is pre-wired
Specifications:
| Panel Material | High quality ABS |

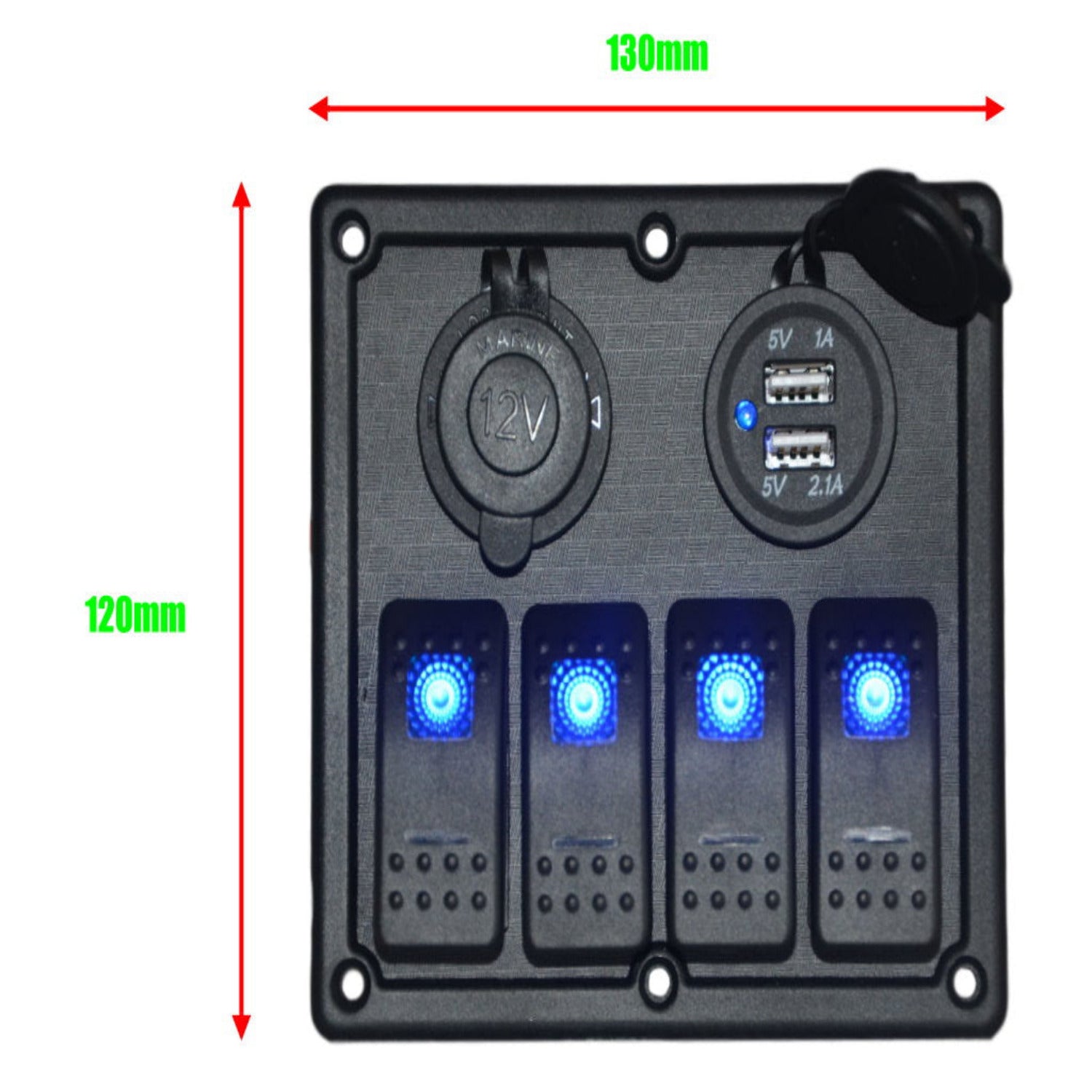

| Panel Size | 130 x 120 x 75mm (W x H x D) |
| Voltage | 12V/24V |
| Switching System | 4 x Blue LED water-resistant enclosed Rocker switch |
| USB Charger Output | 5V 2.1A DC + 5V 1A DC |
| Rating | DC 12V 20A/24V 10A |
| Operating Temperature | -25 degree to 80 degree |
| Electrical Life | 10000 make and break cycles at full load |
| Circuit Breaker | 4(10A x 2, 15A x 2) |
