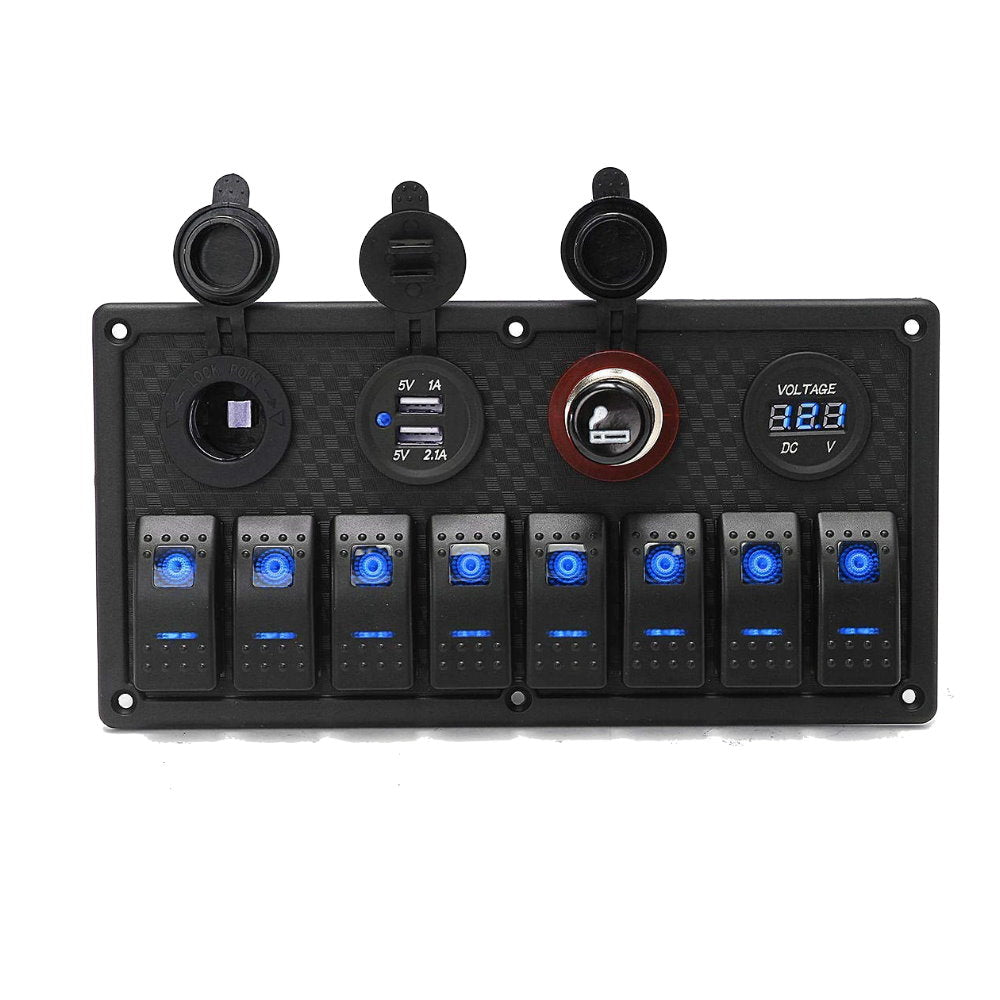

YJ-SP-019 12V 24V 8 Gang LED Rocker Switch Panel USB Car Charger for 4WD Boat Caravan

Availability: In stock

Sku: YJ-SP-019

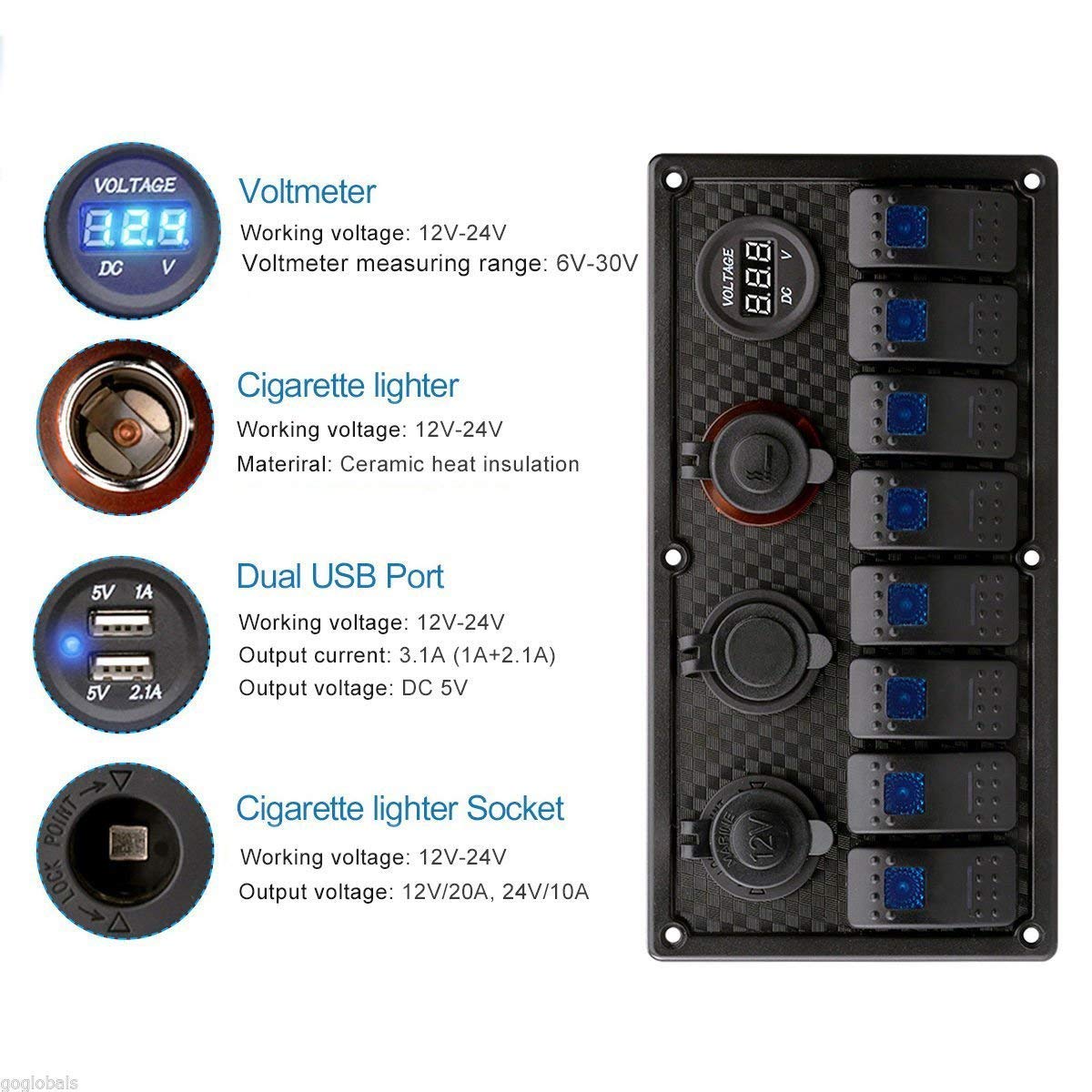

This 12V 24V 8 Gang Switch Panel features 8 Rocker Switches, Dual USB Charger, Cigarette Lighter, Car Cigarette Lighter Charger & Voltmeter. The panel is made of high quality ABS material and measures 236 x 120mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.

IMPORTANT NOTE:

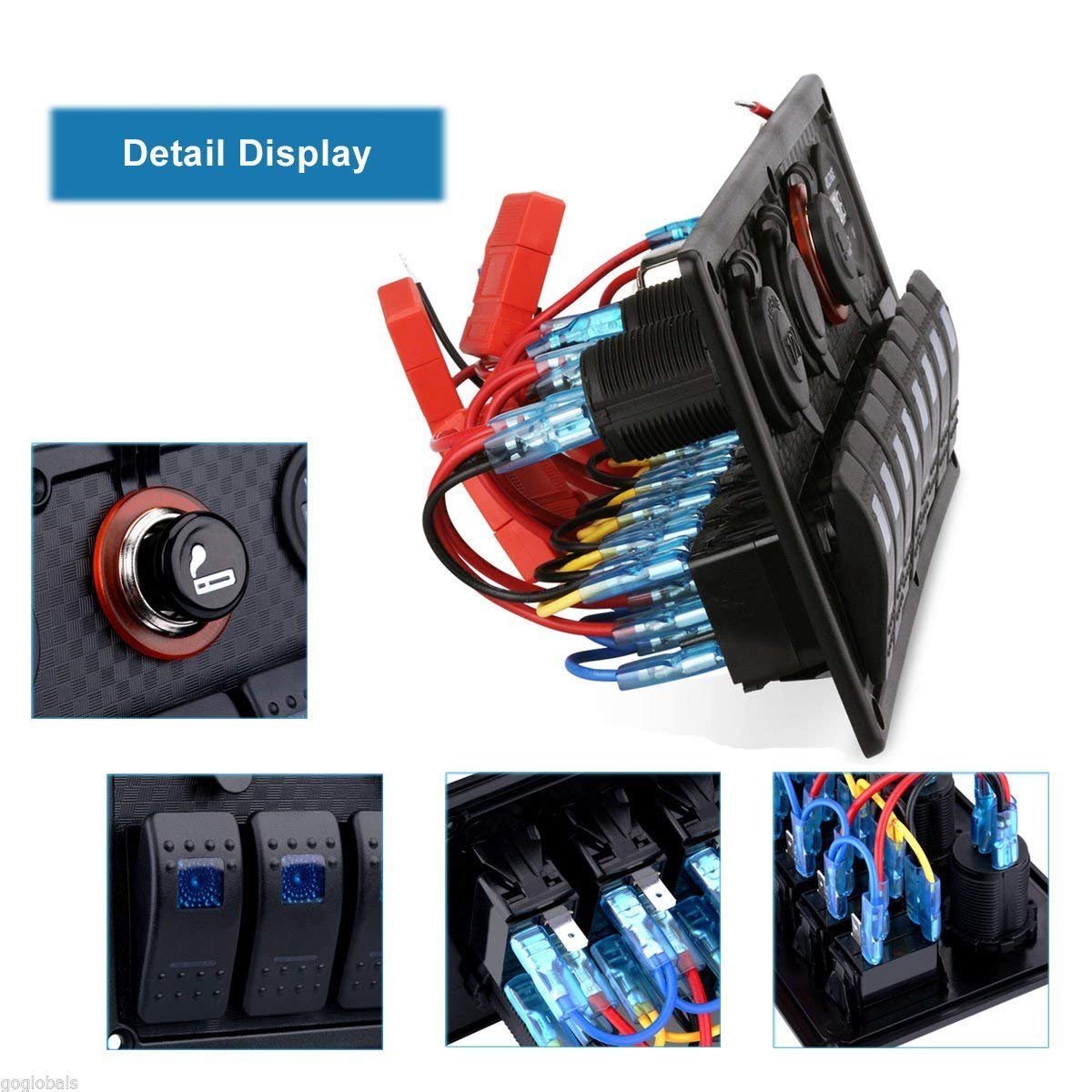

This Panel comes with all wires connected; they are not supposed to be pulled out.

Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Rocker Switch

  • Loop Circuit:ON-OFF
  • Maximum power: 240W
  • Input voltage: DC12V / 24V
  • Protection class: IP65
  • Operating Temperature:-25℃-80℃

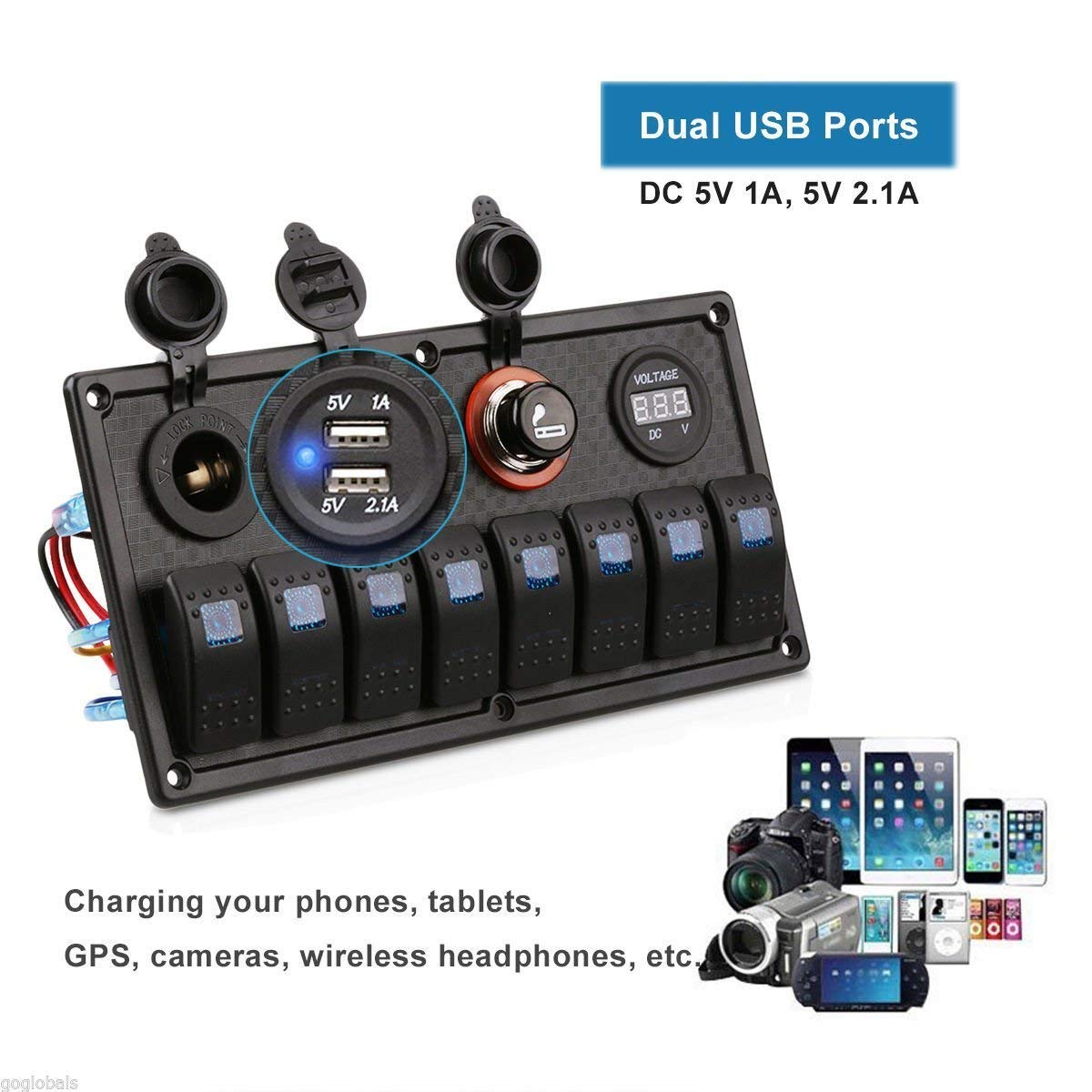

Dual USB Port

  • Working voltage:12-24V
  • Output current:3.1A
  • Output voltage:5V
  • LED Light:Blue

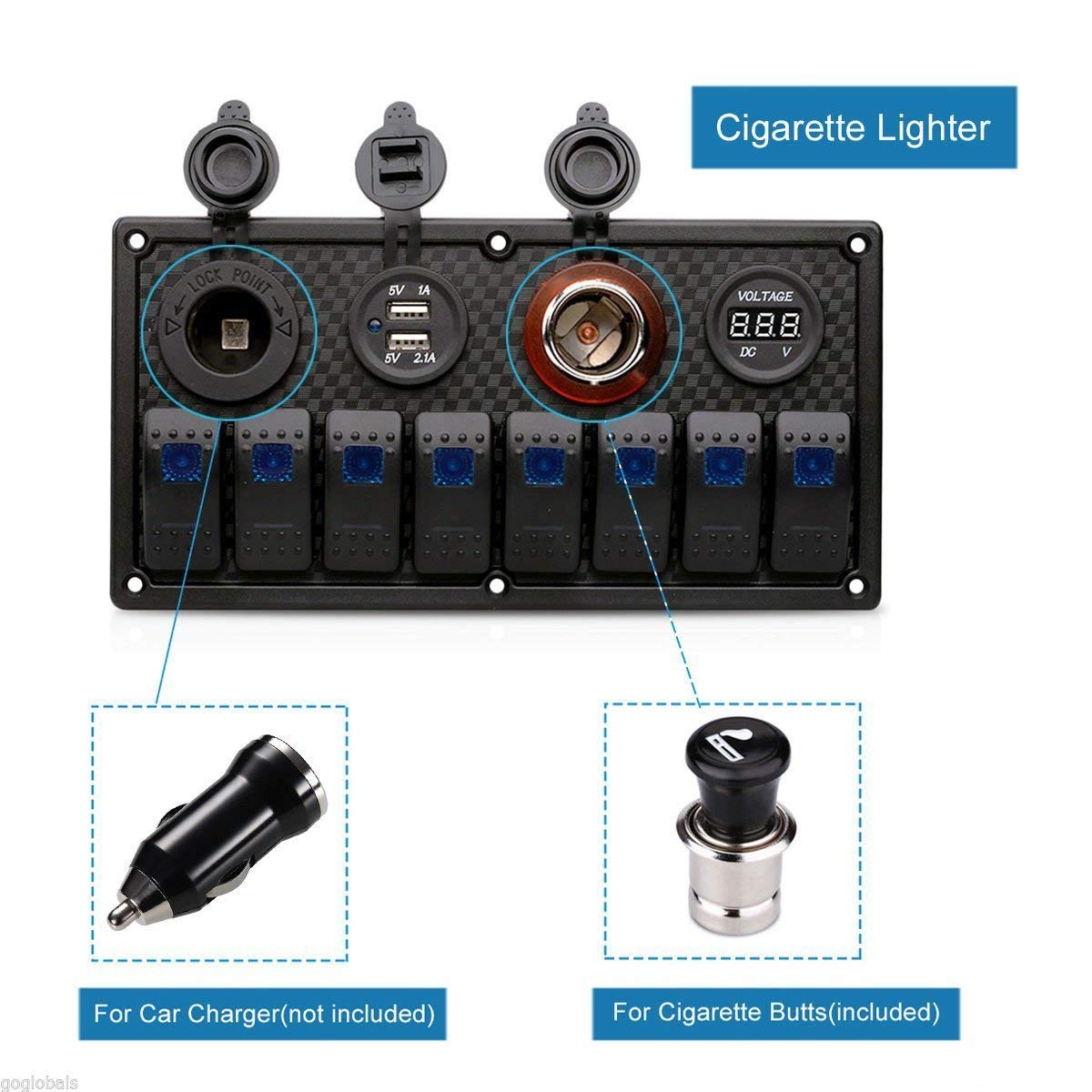

Cigarette Lighter Socket

  • Working voltage:12-24V
  • Output voltage:12-24V
  • LED Light:Blue

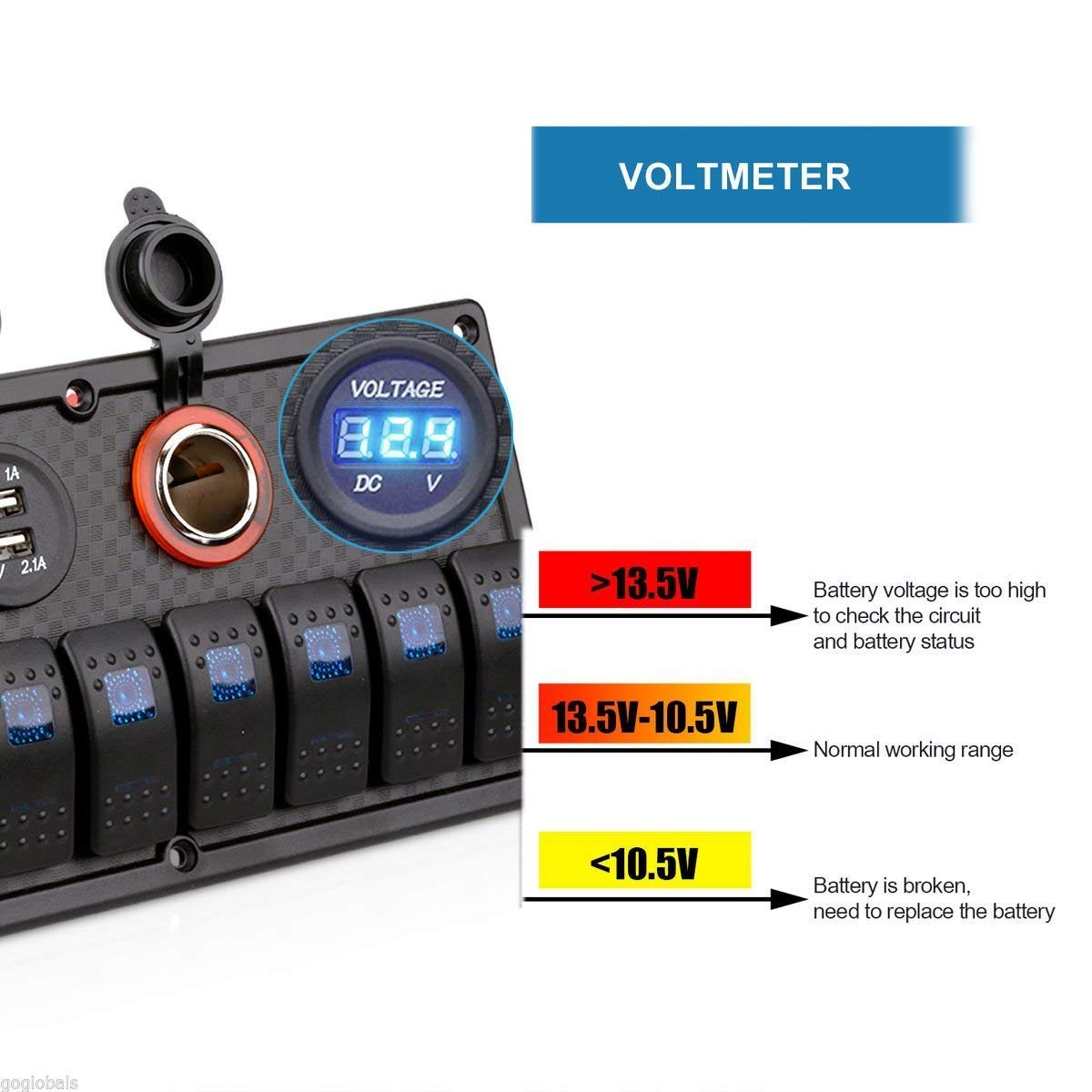

Voltmeter

  • Measuring DC voltage, with anti-reverse, short circuit protection
  • The DC voltmeter range 12-24V, has reverse polarity protection function
  • Used to monitor the battery voltage and battery voltage state
  • This can also be used for other products voltage measurement purposes
  • Real-time detection of battery voltage, using a battery used under normal operating voltage
  • This will help the users to monitor and maintain the bettery health
  • A Proper maintenance will extend and protect the battery and engine life

Features:

  • 100% brand new and high quality
  • Overload protection by Circuit breaker(Include Fuse and Fuse Holder)
  • Rubber seal-cap to keep it water-tight, suitable for marine
  • IP Rating: IP66
  • Suitable for both 12V and 24V systems, Panel is pre-wired

Specifications:

Panel Material High quality ABS

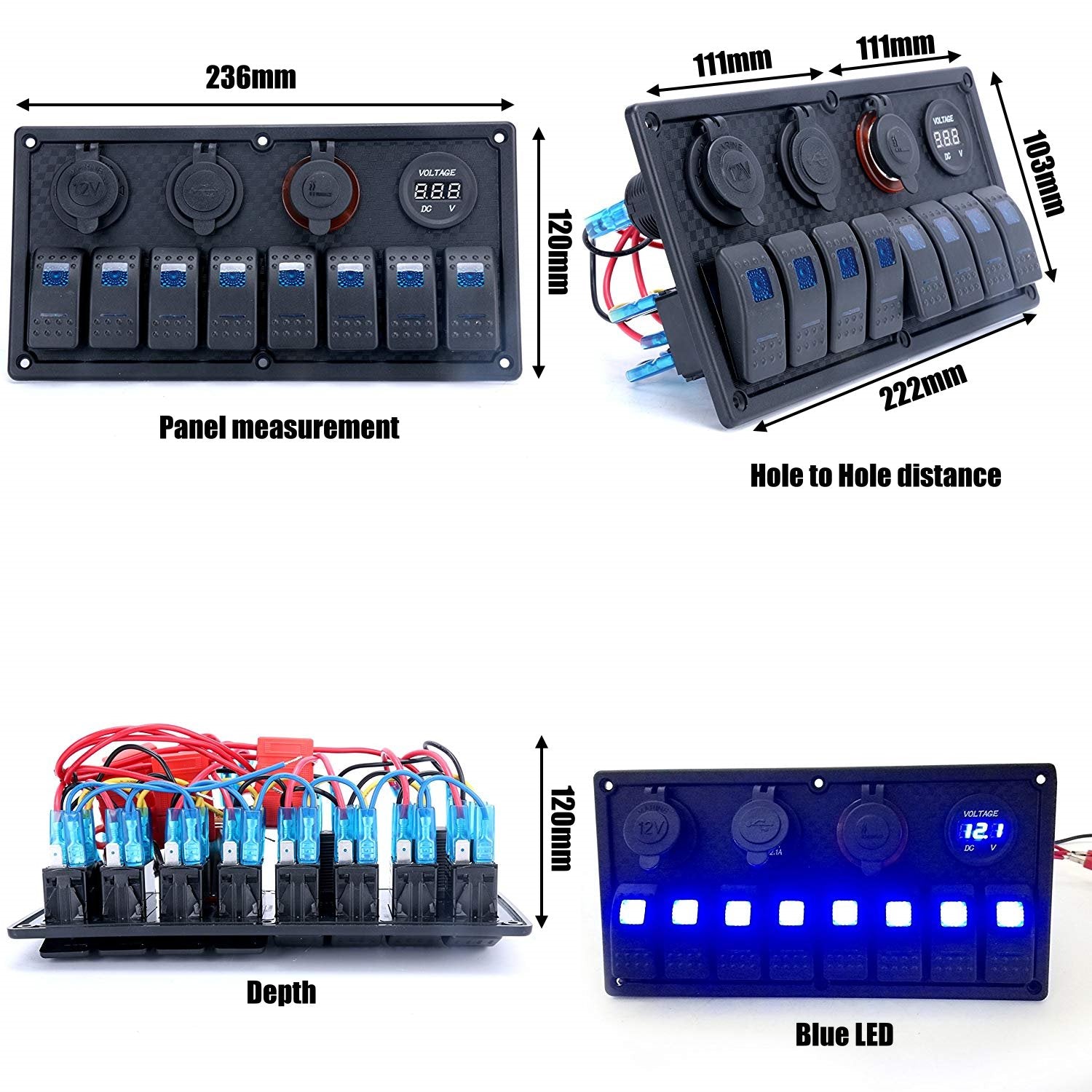

Panel Size 236 x 120 x 120mm (W x H x D)
Voltage 12V/24V
Switching System 8 x Blue LED water-resistant enclosed Rocker switch
USB Charger Output 5V 2.1A DC + 5V 1A DC
Rating DC 12V 20A/24V 10A
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Circuit Breaker 6(5A x 2, 10A x 2, 15A x 2)
