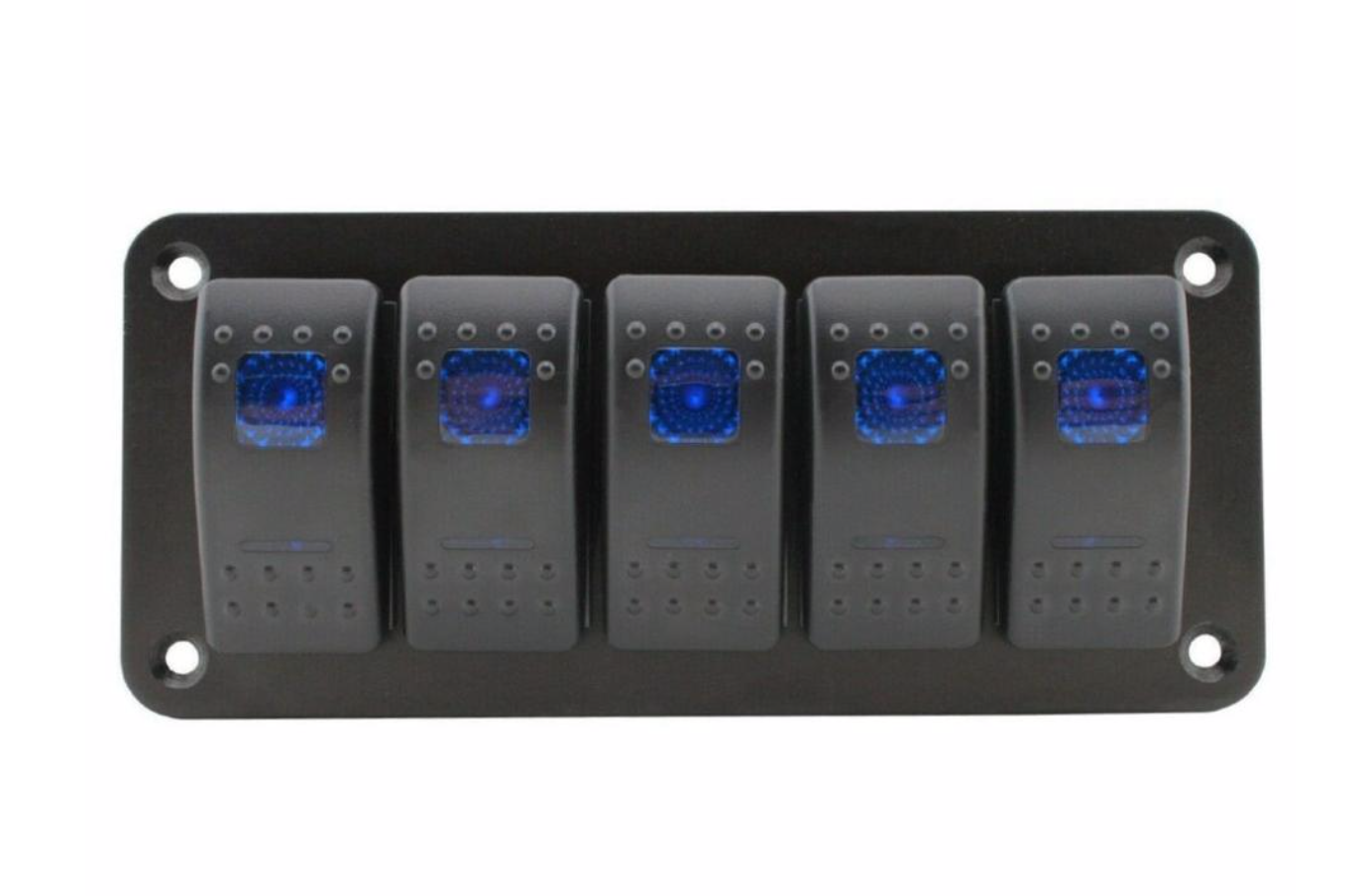

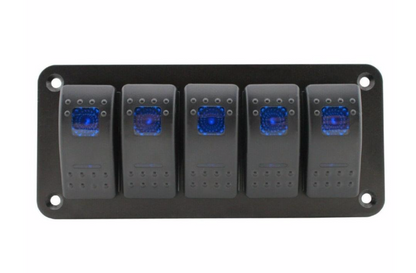

YJ-SP-A05 12V 24V 5 Gang Slimline LED Rocker Switch Panel for 4WD Boat Caravan

YJ-SP-A05 12V 24V 5 Gang Slimline LED Rocker Switch Panel for 4WD Boat Caravan

$45.00
$45.00
Sale Sold out
Taxes included.

This 12V Slimline 5 Gang Switch Panel is made of high quality Aluminum material and measures 154mm (W) x 68mm (H. It will work on most 12V/24V car, boat, caravan, bus, trailer etc.

IMPORTANT NOTE:

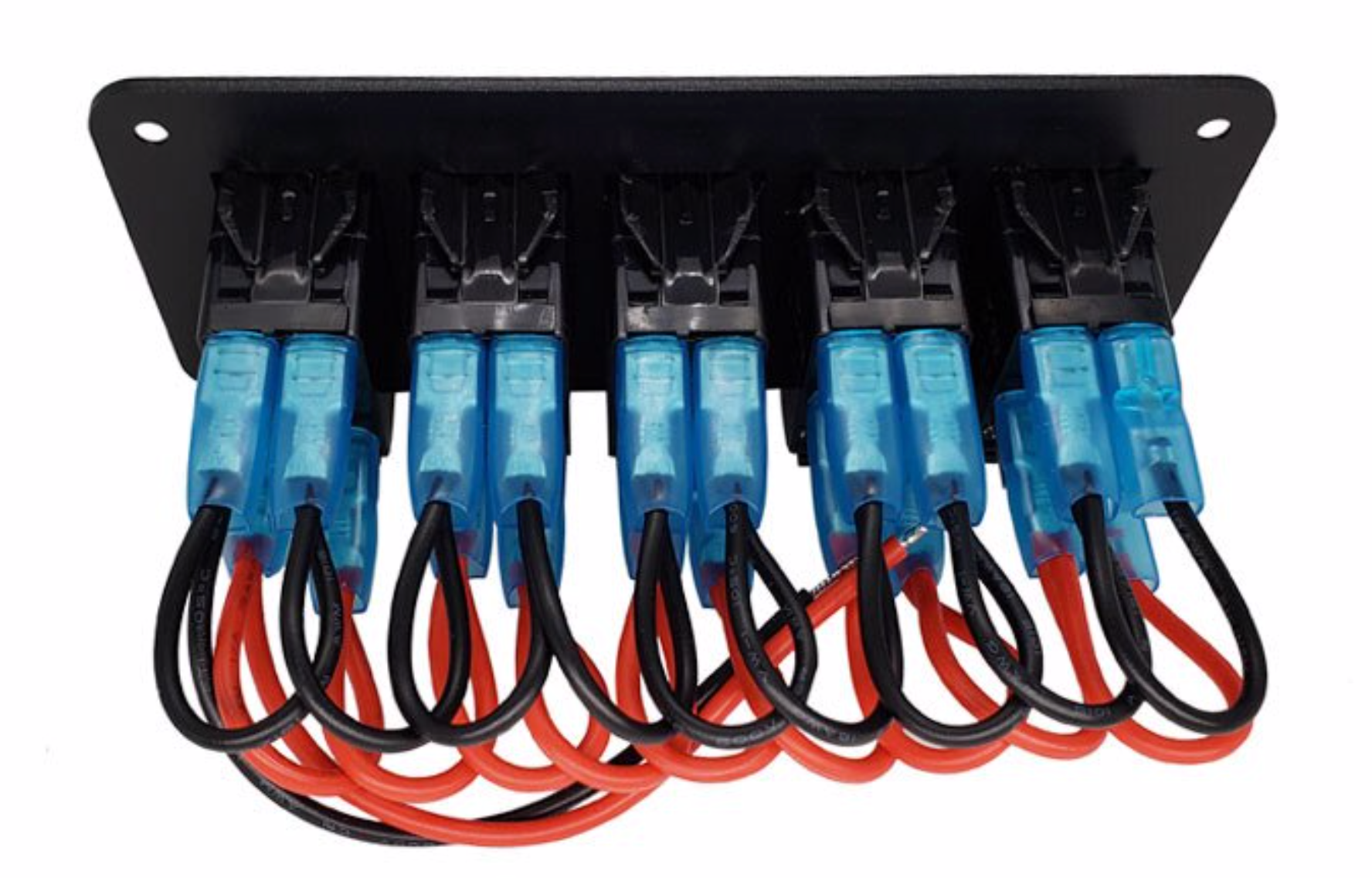

This Panel comes with all wires connected; they are not supposed to be pulled out.

Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Features:

  • 100% brand new and high quality
  • Pre-wired for easy installation in both 12V and 24V vehicles, yachts, ships, caravans, trucks, etc
  • IP Rating: IP66
  • Suitable for both 12V and 24V systems

Specifications:

Panel Material High quality Aluminum

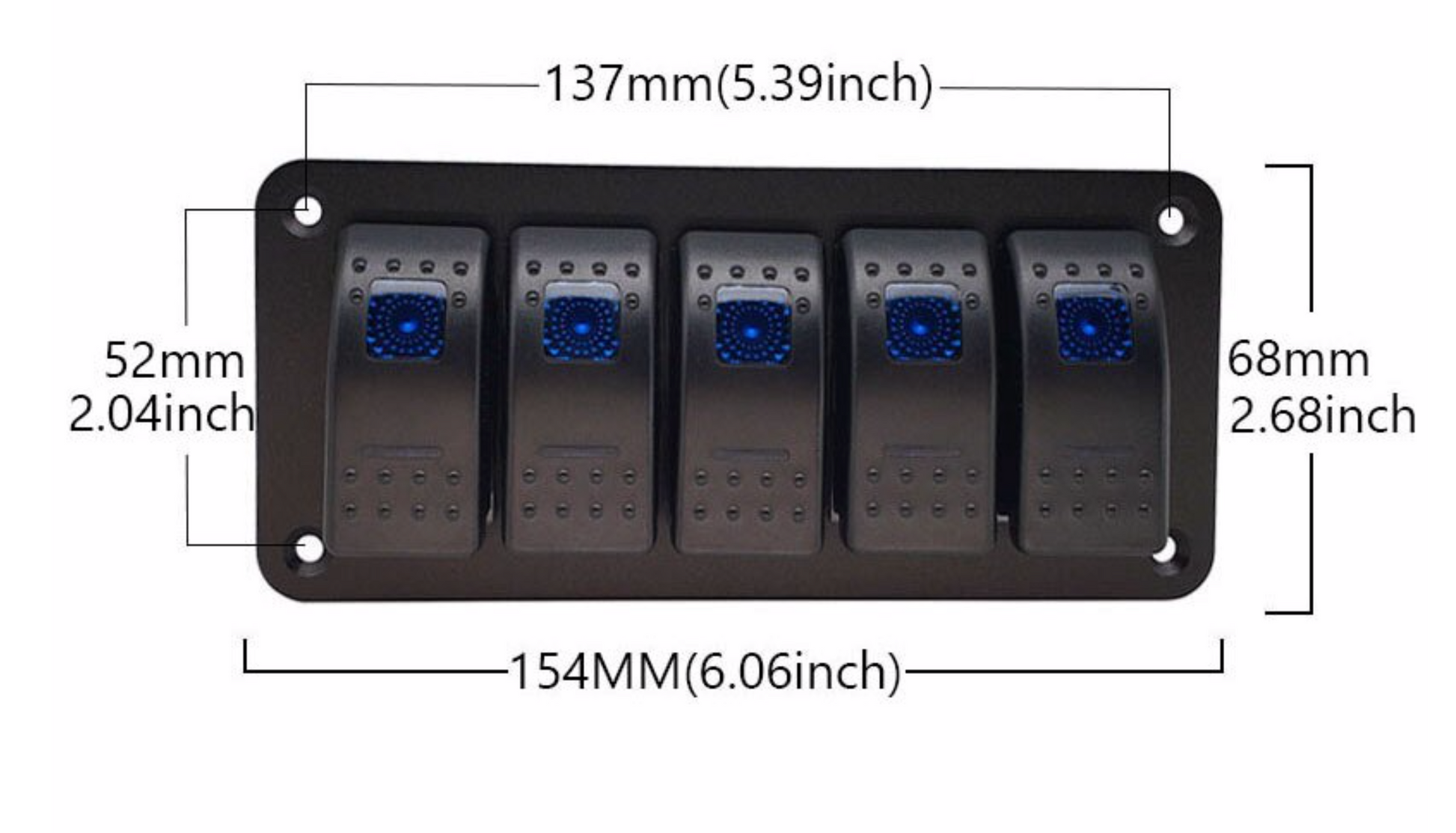

Panel Size 154mm (W) x 68mm (H)
Voltage 12V/24V
Switching System 5 x Blue LED water-resistant enclosed Rocker switch
Rating DC 12V 20A/24V 10A
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Material Nylon Plastic
Certificate CE Approve
Waterproof Grade Yes
Color Black
LED Lights Blue
