YJ-SPA94 5 Gang 12V/24V Switch Panel, Dual USB 4.2A Charger Port, Digital Voltmeter, Cigarette Lighter Socket

Availability: In stock

Sku: YJ-SPA94

This 12V 24V 5 Gang Switch Panel features 5 Switches, Dual USB 4.2A Port, Digital Voltmeter & Cigarette Lighter Socket. The panel is made of high quality ABS material and measures 150 x 105mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.

IMPORTANT NOTE:

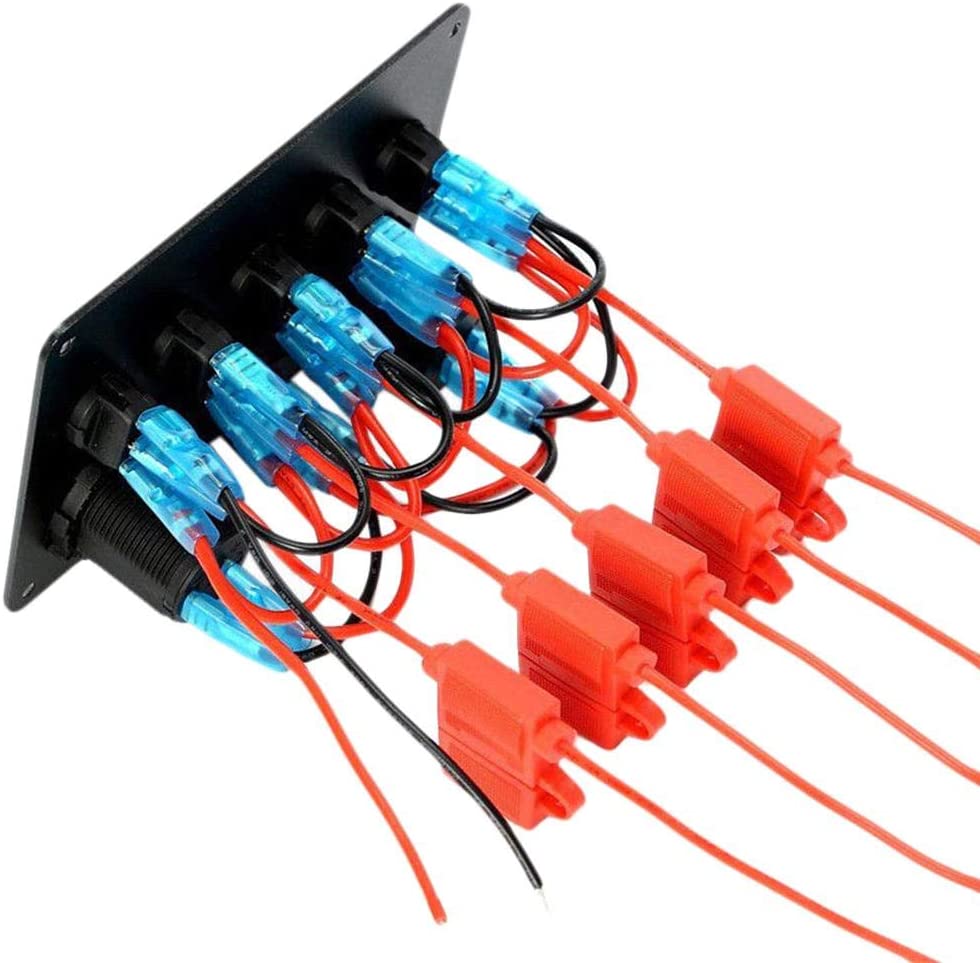

This Panel comes with all wires connected, they are not supposed to be pulled out. Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Features:

  • 12V 24V toggle switch panel is integrated with dual USB port 5V 2.1A, digital voltage display, blue LED light indicator, waterproof board and 5 on/off rocker switches, great for all types of circuit control, charging needs and voltage monitoring.
  • This switch panel is IP65 Waterproof, with slot waterproof hat and rubber sealed ring, gasket. The panel is made of high quality aluminum plate, which makes it Scratch-proof and Corrosion Resistant. Can be used at -25℃~85℃.
  • Real time LED voltmeter shows the status of the voltage with no-glare lighting.
  • Built-in 15A Fuse, has circuit protection, overload protection, reverse polarity protection, safe to use.
  • Independent ON/OFF switch, this panel can control 5 devices at the same time. It is available to DIY your decals and know their functions clearly with the sticker label.

Specifications:

Panel Material High quality ABS

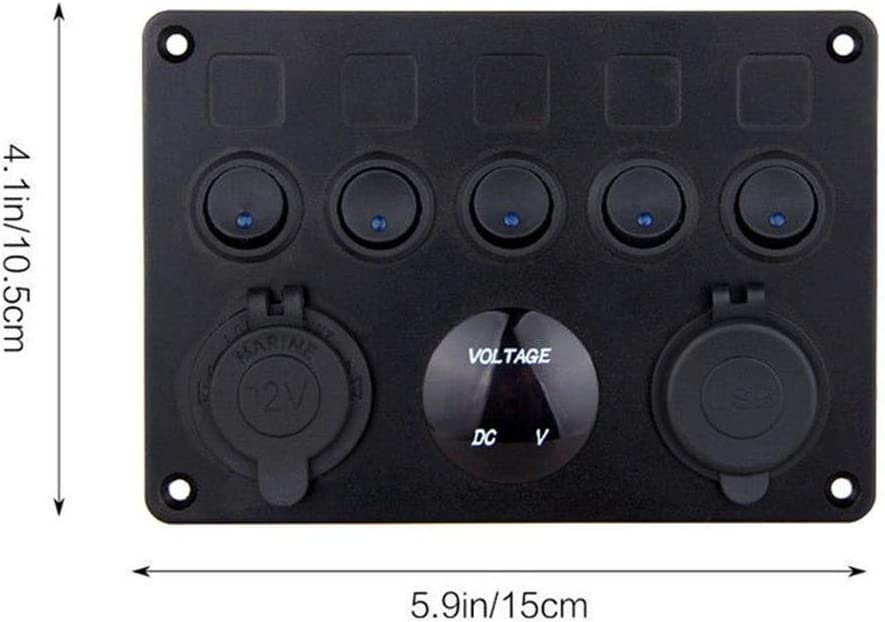

Panel Size 150 x 105mm (W x H)
Voltage 12V/24V
Switching System 5 x Blue LED water-resistant enclosed Rocker switch
Rating DC 12V 20A/24V 10A
Operating Temperature -25 degree to 85 degree
Electrical Life 10000 make and break cycles at full load
