YJ-SP-008 12V 24V 4 Gang LED Rocker Switch Panel USB Car Charger for 4WD Boat Caravan

  • Sale
  • Regular price $45.00
Tax included.

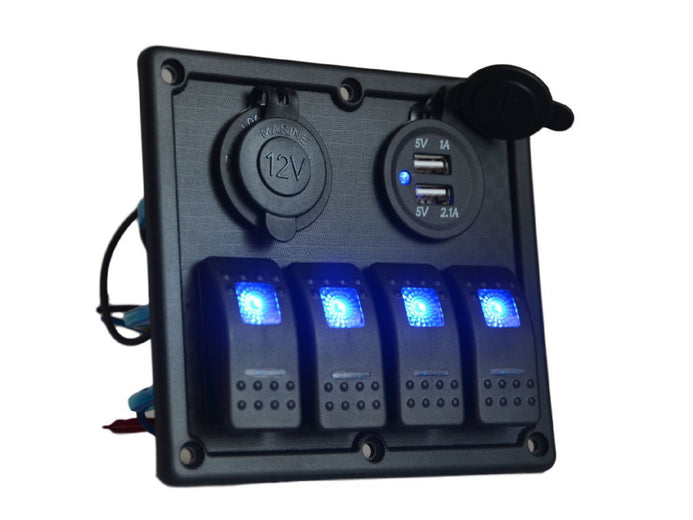

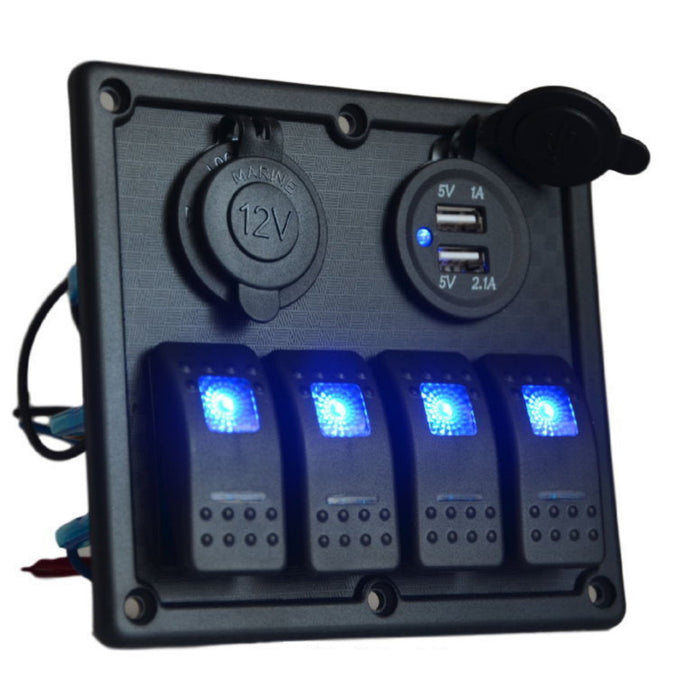

This 12V 24V 4 Gang Switch Panel features 4 Rocker Switches, Dual USB Charger & Car Cigarette Lighter Charger. The panel is made of high quality ABS material and measures 130 x 120mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.

IMPORTANT NOTE:

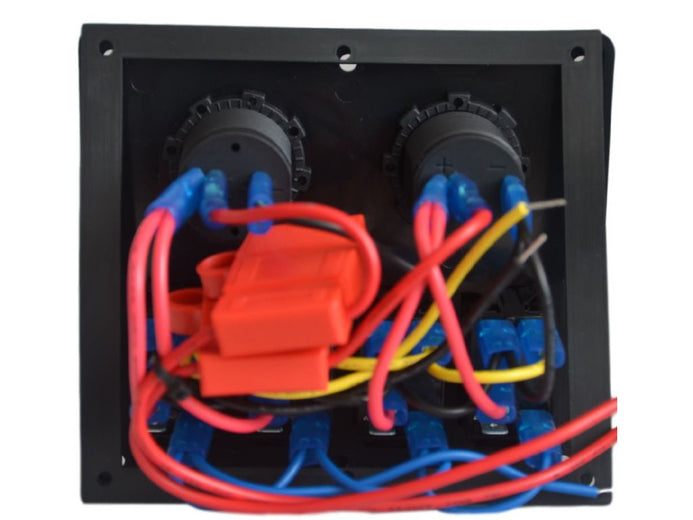

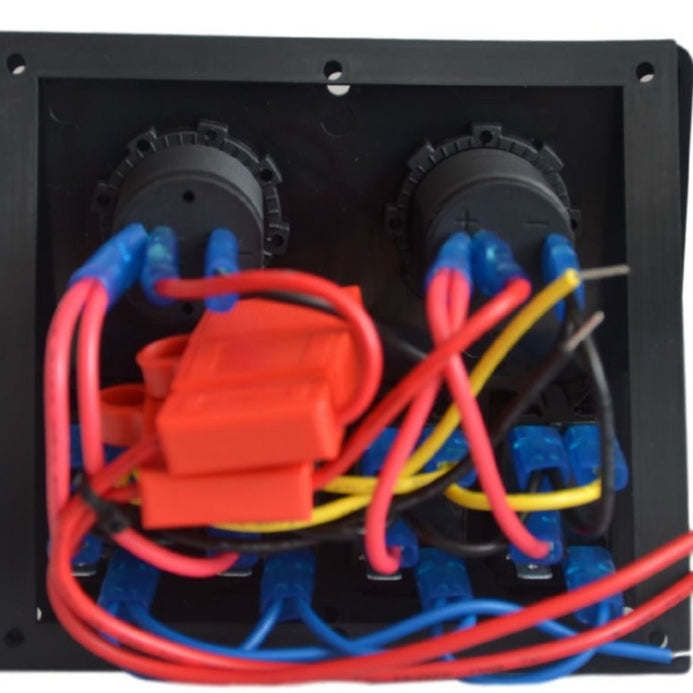

This Panel comes with all wires connected, they are not supposed to be pulled out. Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Features:

  • 100% brand new and high quality
  • Overload protection by Circuit breaker(Include Fuse and Fuse Holder)
  • Rubber seal-cap to keep it water-tight, suitable for marine
  • IP Rating: IP66
  • Suitable for both 12V and 24V systems, Panel is pre-wired

Specifications:

Panel Material High quality ABS

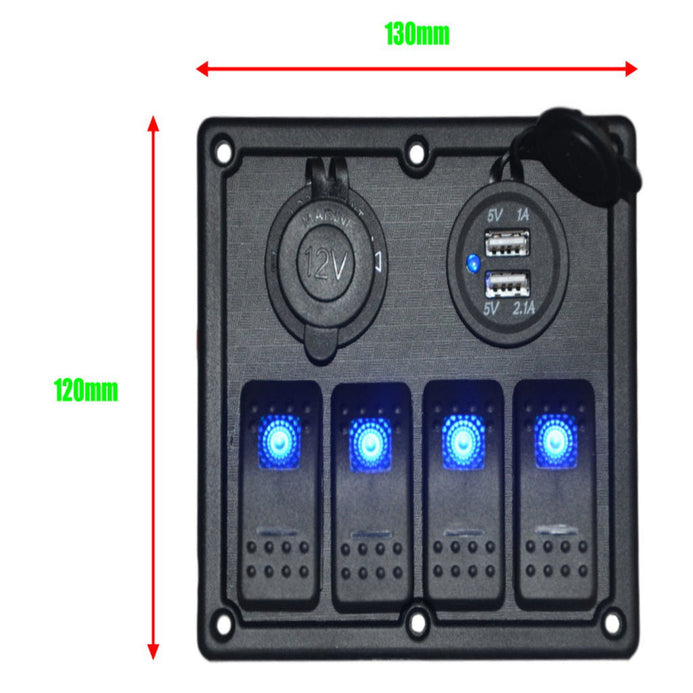

Panel Size 130 x 120 x 75mm (W x H x D)
Voltage 12V/24V
Switching System 4 x Blue LED water-resistant enclosed Rocker switch
USB Charger Output 5V 2.1A DC + 5V 1A DC
Rating DC 12V 20A/24V 10A
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Circuit Breaker 4(10A x 2, 15A x 2)
