YJ-SP-019 12V 24V 8 Gang LED Rocker Switch Panel USB Car Charger for 4WD Boat Caravan

Availability: In stock

Sku: YJ-SP-019

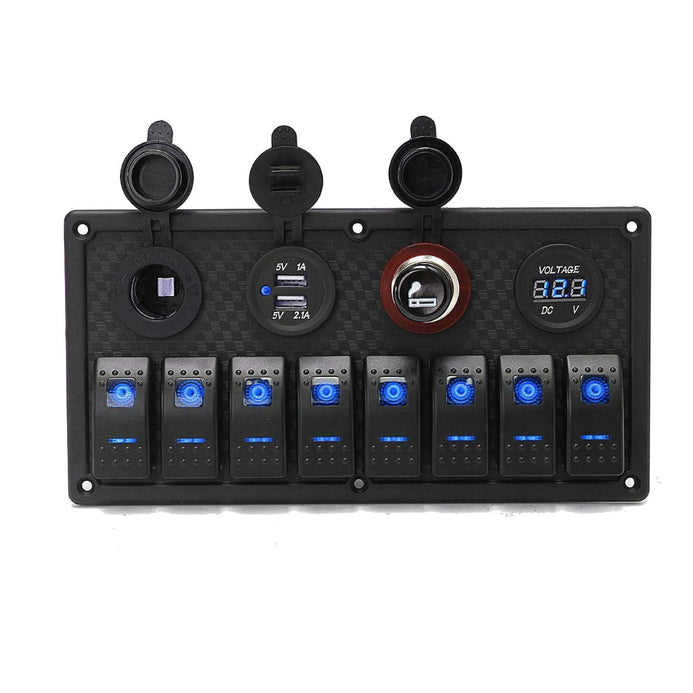

This 12V 24V 8 Gang Switch Panel features 8 Rocker Switches, Dual USB Charger, Cigarette Lighter, Car Cigarette Lighter Charger & Voltmeter. The panel is made of high quality ABS material and measures 236 x 120mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.

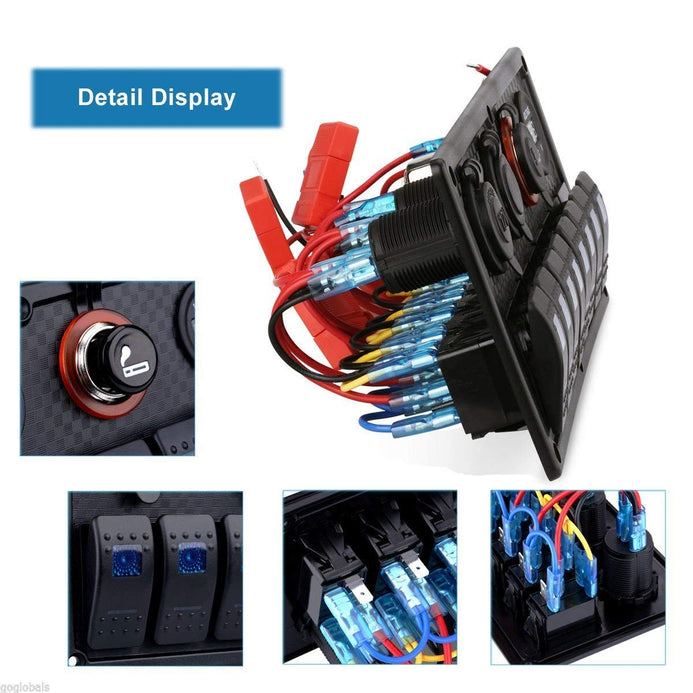

This Panel comes with all wires connected, they are not supposed to be pulled out. Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Rocker Switch

  • Loop Circuit:ON-OFF
  • Maximum power: 240W
  • Input voltage: DC12V / 24V
  • Protection class: IP65
  • Operating Temperature:-25℃-80℃

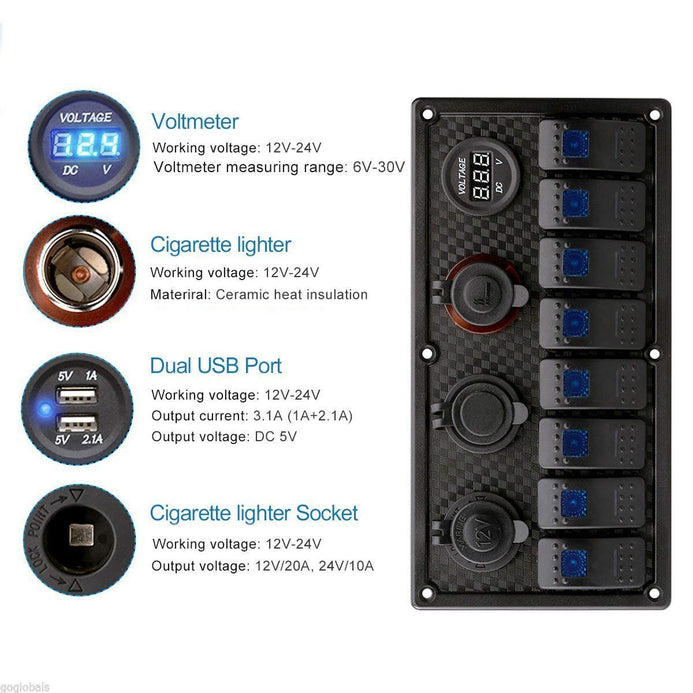

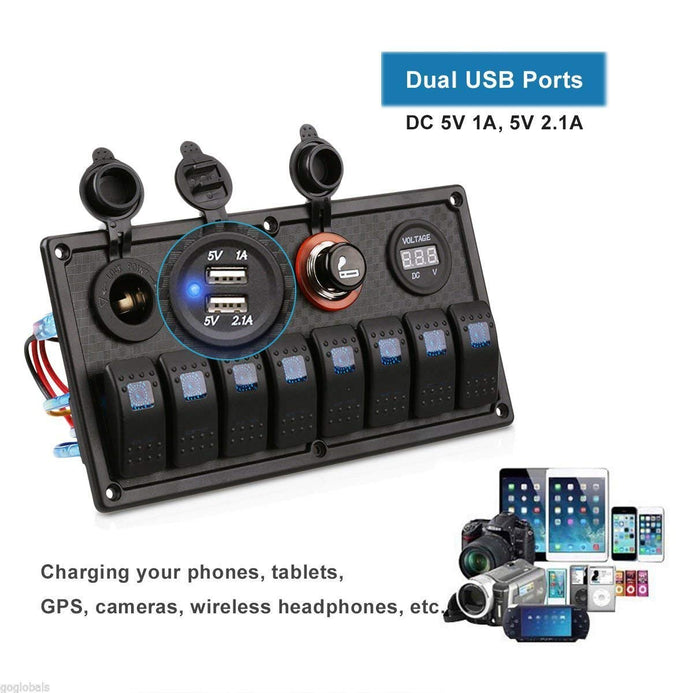

Dual USB Port

  • Working voltage:12-24V
  • Output current:3.1A
  • Output voltage:5V
  • LED Light:Blue

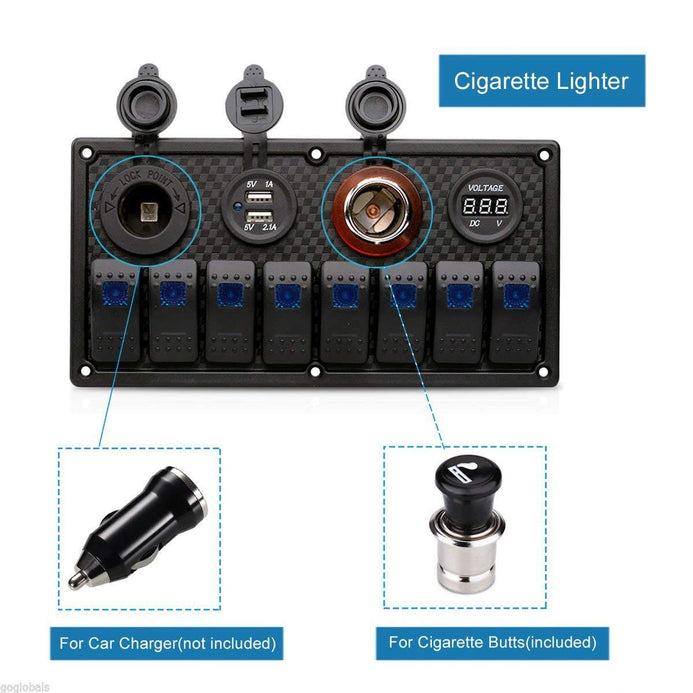

Cigarette Lighter Socket

  • Working voltage:12-24V
  • Output voltage:12-24V
  • LED Light:Blue

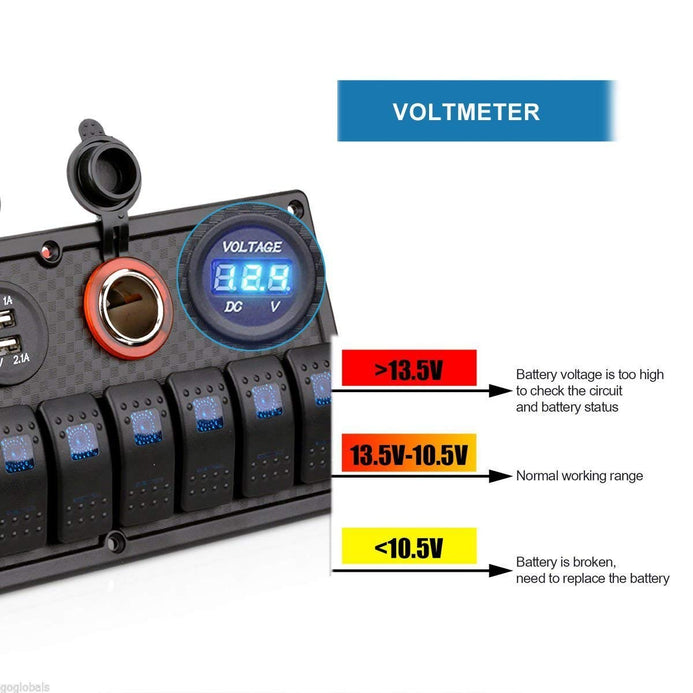

  • Measuring DC voltage, with anti-reverse, short circuit protection
  • The DC voltmeter range 12-24V, has reverse polarity protection function
  • Used to monitor the battery voltage and battery voltage state
  • This can also be used for other products voltage measurement purposes
  • Real-time detection of battery voltage, using a battery used under normal operating voltage
  • This will help the users to monitor and maintain the bettery health
  • A Proper maintenance will extend and protect the battery and engine life


  • 100% brand new and high quality
  • Overload protection by Circuit breaker(Include Fuse and Fuse Holder)
  • Rubber seal-cap to keep it water-tight, suitable for marine
  • IP Rating: IP66
  • Suitable for both 12V and 24V systems, Panel is pre-wired


Panel Material High quality ABS

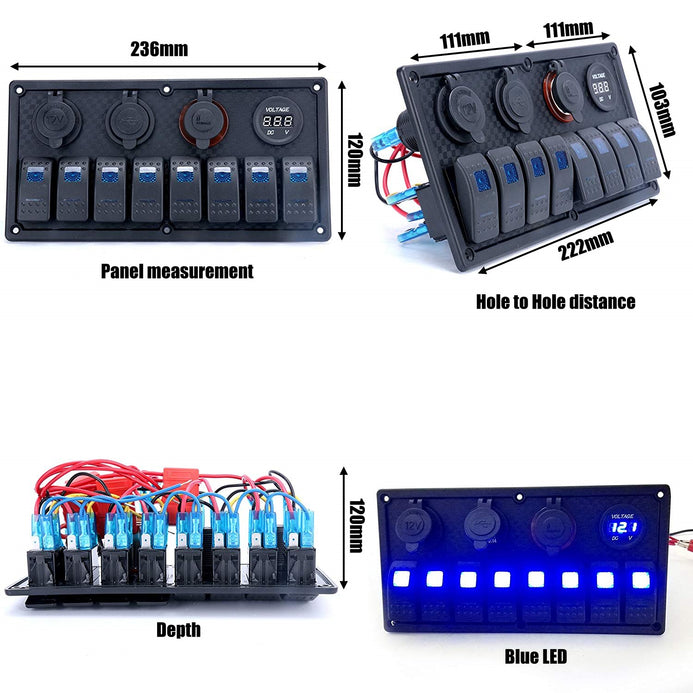

Panel Size 236 x 120 x 120mm (W x H x D)
Voltage 12V/24V
Switching System 8 x Blue LED water-resistant enclosed Rocker switch
USB Charger Output 5V 2.1A DC + 5V 1A DC
Rating DC 12V 20A/24V 10A
Operating Temperature -25 degree to 80 degree
Electrical Life 10000 make and break cycles at full load
Circuit Breaker 6(5A x 2, 10A x 2, 15A x 2)
