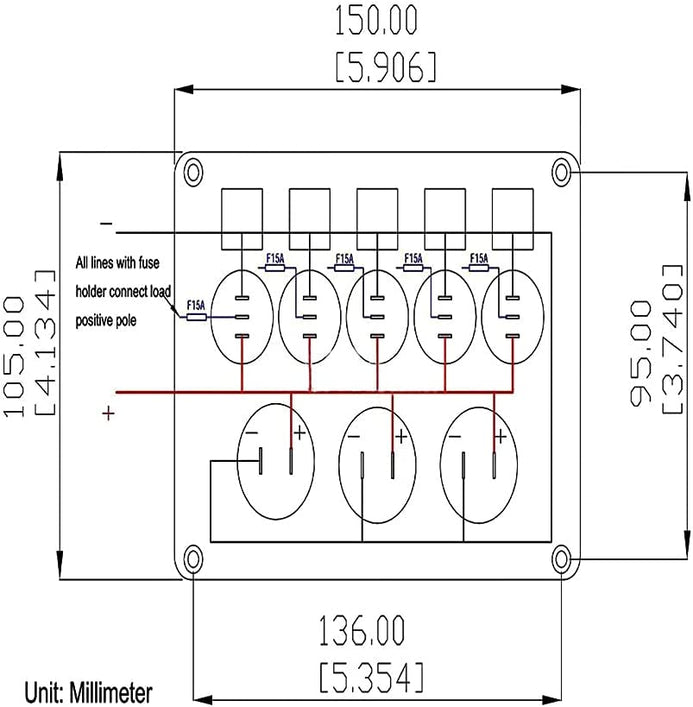

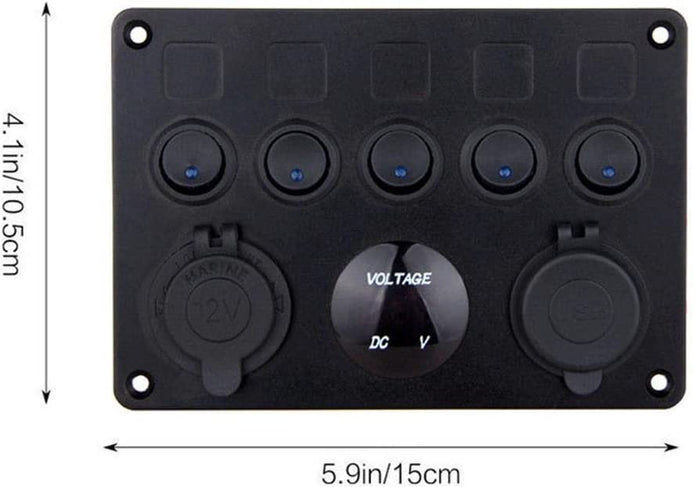

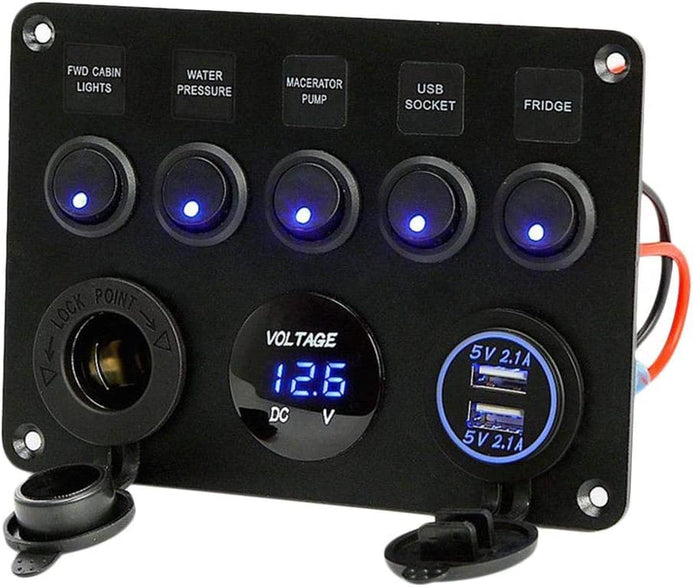

This 12V 24V 5 Gang Switch Panel features 5 Switches, Dual USB 4.2A Port, Digital Voltmeter & Cigarette Lighter Socket. The panel is made of high quality ABS material and measures 150 x 105mm (w x h). It will work on most 12V/24V car, boat, caravan, bus, trailer etc. The panel is waterproof and the charger ports come with rubber seal-cap to keep it water-tight. It also comes with a circuit breaker (including fuse holder & fuses) to protect the switches & chargers from overloading/short circuit.

IMPORTANT NOTE:

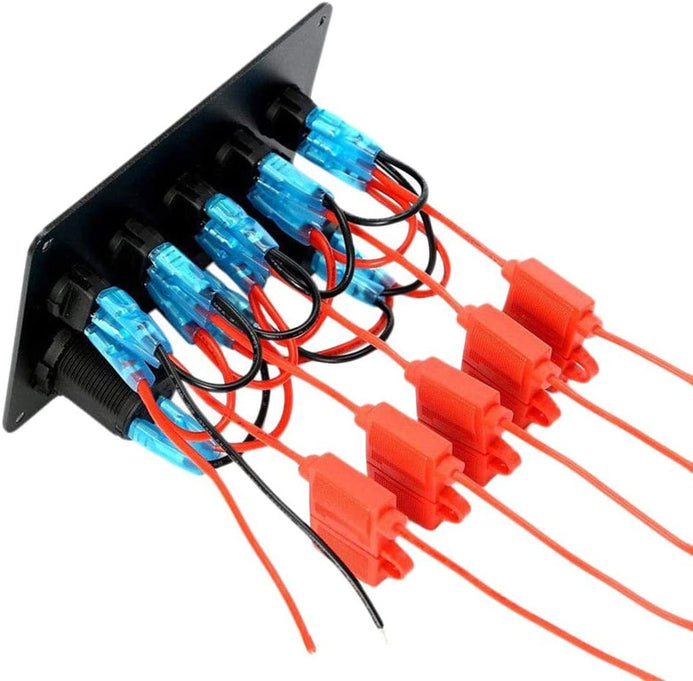

This Panel comes with all wires connected; they are not supposed to be pulled out.

Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.

Features:

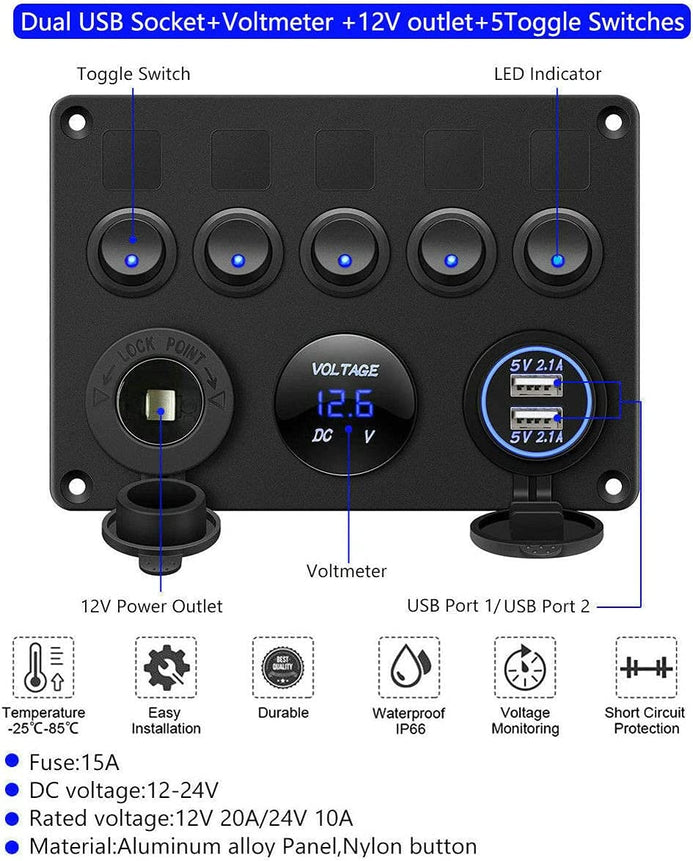

• 12V 24V toggle switch panel is integrated with dual USB port 5V 2.1A, digital voltage display, blue LED light indicator, waterproof board and 5 on/off rocker switches, great for all types of circuit control, charging needs and voltage monitoring.
• This switch panel is IP65 Waterproof, with slot waterproof hat and rubber sealed ring, gasket. The panel is made of high quality aluminum plate, which makes it Scratch-proof and Corrosion Resistant. Can be used at -25℃~85℃.
• Real time LED voltmeter shows the status of the voltage with no-glare lighting.
• Built-in 15A Fuse, has circuit protection, overload protection, reverse polarity protection, safe to use.
• Independent ON/OFF switch, this panel can control 5 devices at the same time. It is available to DIY your decals and know their functions clearly with the sticker label.

Specifications:
