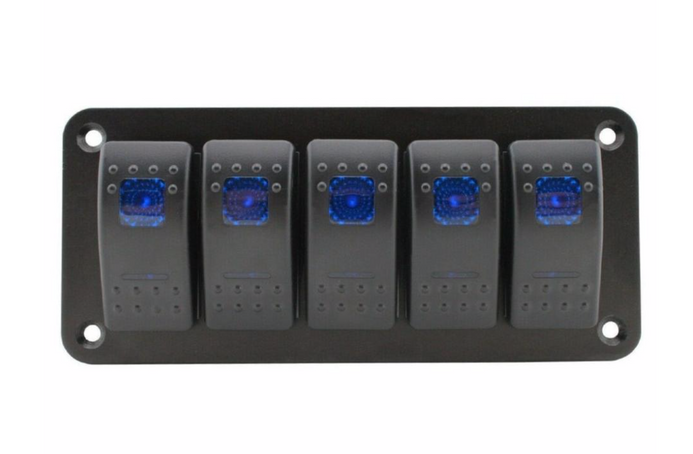

This 12V Slimline 5 Gang Switch Panel is made of high quality Aluminum material and measures 154mm (W) x 68mm (H. It will work on most 12V/24V car, boat, caravan, bus, trailer etc.

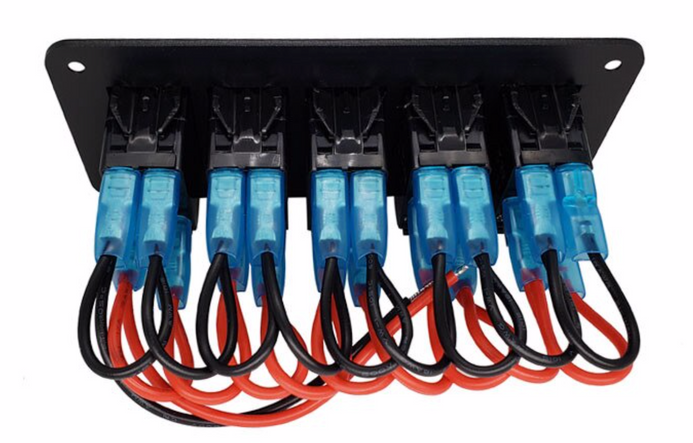

This Panel comes with all wires connected, they are not supposed to be pulled out. Any damage caused by dismantling switch or pulling out wires WILL NOT BE COVERED BY WARRANTY.
- 100% brand new and high quality
- Pre-wired for easy installation in both 12V and 24V vehicles, yachts, ships, caravans, trucks, etc
- IP Rating: IP66
- Suitable for both 12V and 24V systems
|Panel Material||High quality Aluminum|

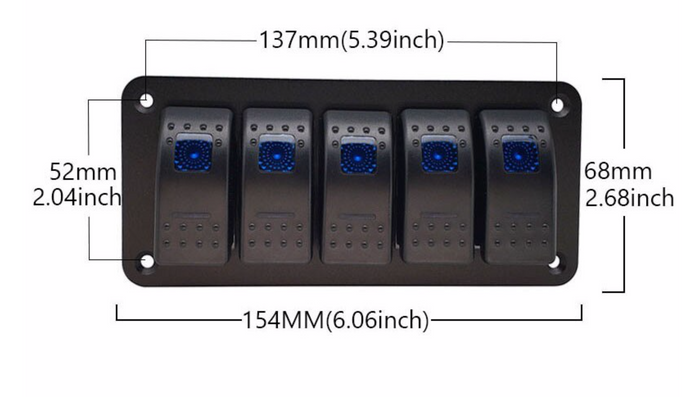

|Panel Size||154mm (W) x 68mm (H)|
|Switching System||5 x Blue LED water-resistant enclosed Rocker switch
|Rating||DC 12V 20A/24V 10A|
|Operating Temperature||-25 degree to 80 degree|
|Electrical Life||10000 make and break cycles at full load|
